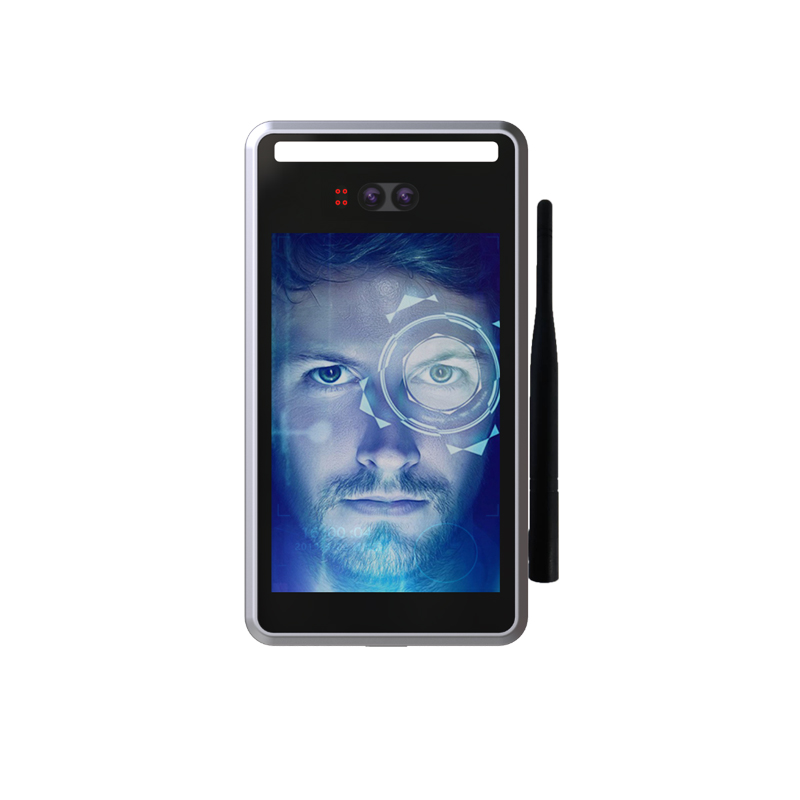

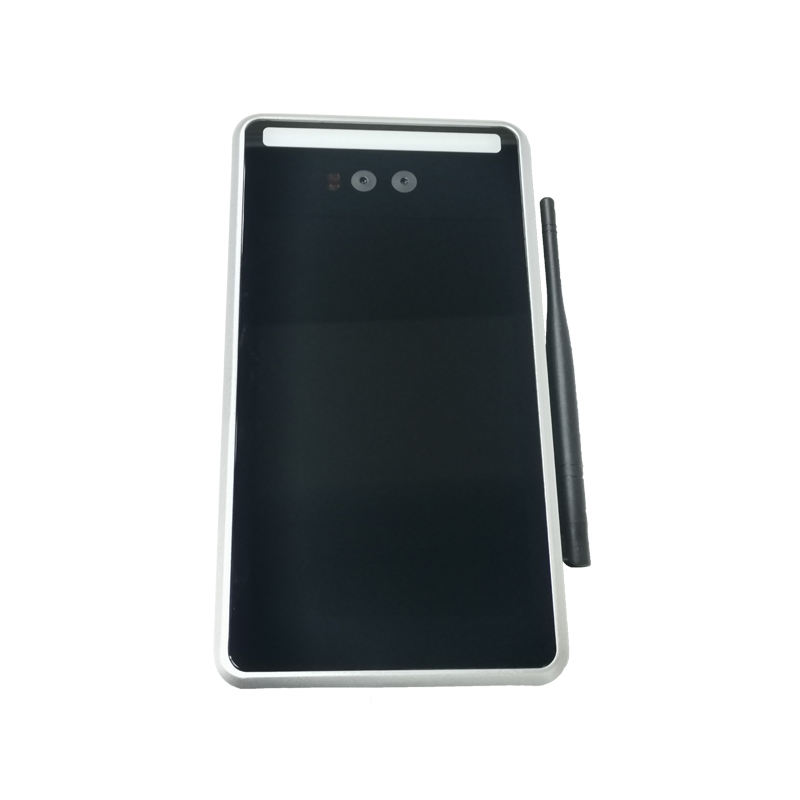

Free SDK Smart Face Recognition Access Control Machine With 4G Module
Face recognition access control terminal machine which integrates Beward Bi-Scan face recognition technology,it's suitable for office areas,hotels,office buildings,schools,shopping malls,shops,public services,management projects and other places that require face access control.
Features:
1. 8-inch IPS touch screen,resolution 800*1280
2. Support Real Time Human Body Detection
3. Support mask detection
3. Using Linux operating system,better system stability
4. The device supports local login to manage,query,and configure
Technical specification:
| Model | B2002FR-8I-GT4-WM(Wall bracket) B2002FR-8I-GT4-CM(Column bracket) |
| Hardware | Hi3516D CPU+1G memory+16G EMMC flash |
| Processor | Dual Core Processor(Hi3516D V300)+ 1G memory + 16G flash |
| Operating system | Linux Operating system |
| Viewing angle | Vertical viewing angle: 30°; Horizontal viewing angle: 30° |
| Sensor | 1/2.8" Progressive Scan CMOS |
| Lens | 6mm |
| 4G module | Supports LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE, supports max 150mbps downloading and max 50Mbps uploading speed rate. |
| Wifi module | IEEE 802.11 b/g/n , 2.4Ghz Frequency(Optional) |
| Speaker | voice playback content can be customized |
| Performance | |
| Recognition height | 1.2~2.2 meters,angle adjustable |
| Recognition distance | 0.5~1.5 meters,depends on lens |
| Recognition time | Less than 0.5 second |
| Storage capacity | 160,000 capture records |
| Face capacity | 24,000pcs |
| Screen brightness | ≥400cd/m2 |
| Network interface | 1 RJ45 10M / 100M adaptive Ethernet port,Gigabit Ethernet port can be customized |
| Wiegand interface | 1ch Wiegand interface input/output |
| RS485 | 1ch can be customized(Optional) |
| Camera | 2MP CMOS CAMERA |
| Camera | Two cameras |
| Effective pixels | 2MP,1920*1080 |
| Min Illumination | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR) |
| SNR | ≥50db(AGC OFF) |
| WDR | 110db,ISP algorithm face partial exposure |
| Resolution | Main stream : 50 hz: 25fps (1920x1080, 1280x720) 60 hz : 30fps (1920x1080, 1280x720) Sub stream: 720x576, 1-25(30)fps/s /640x480, 1-25(30)fps/s, 320x240, 1-25(30)fps/s |
Free provided SDK/HTTP/MQTT for secondary development.
OEM/ODM,customized service are available.
FAQ:
Q: Do you sell at retail?
A: Sorry dera,we are factory.If you want to buy for personal user,kindly please let us know your address,the local dealers near you will be recommended.
Q: Do you provide SDK/API for secondary development?
A: Of course,customized service is our advantage.We could provide SDK/HTTP/MQTT(integrate cloud) for integration.included firmware customization.
Q: What's the MOQ of product?
A: 1PC for the sample order;After tested sample order,the MOQ is 10pcs/Model.
Q: What are your terms of payment?
A: We accept Paypal,Western Union and TT before production.
Q: Could you provide OEM/ODM for customers?
A: Sure,we provide full OEM&ODM service,Like Logo printed,carton box design ect.Our engineer could design the OSD menu as request.If for more questions,welcome to contact us for further discussion,thanks.
Q: What's the delivery time?
A: Sample order about 2-7 working days;Normal order about 6-12 working days;Bulk order can about 10-25 working days.It's depend on the quantities.
Q: What's the warranty and support?
A: All the goods be checked before dispatch.We provide 2 years warranty after the shipment date.
We have professional technical support team to support our customers,and if you have any question for the technology of our products,please email or chat with us by skype,thank you in advance.
